350kg Single Stage Davit
- Constructed using high-quality marine grade materials
- Safe one person operation
- Compact design, maximum efficiency
- Epoxy marine coating for protection against corrosion
- Australian made

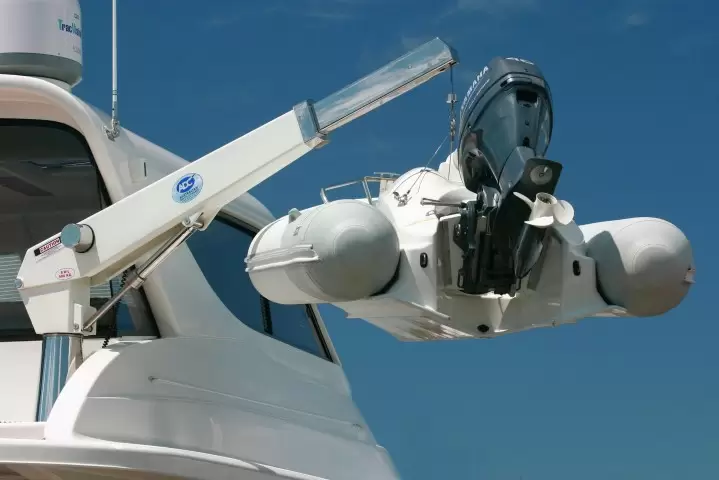

Our 350kg Single Stage Davit is the perfect solution for hoisting and extending jibs on your boat. Manufactured to meet Australian Standard 1664, this davit ensures the safety of you and your family while out on the water. Its manual luff and jib extension are detent pinned for easy hoisting of tenders and loads, while the manual slew on Acetal bearings and SRBF thrust washer allows for smooth and precise movement.
Constructed with DNV certified 5083 Aluminium, this davit is strong and durable. It comes with a 12 or 24 Volt hoist, and a 2 button remote attached with a 4.5m curly cord for convenient operation. The current draw at maximum load is 12V-80 Amps or 24V-40 Amps, with a line speed of 5.5m per minute. The hoisting rope is made of Dyneema SK 75 for added strength and reliability.
The standard reach of our 350kg Single Stage Davit is 1.8m or 2.3m, with a lift height of 1800mm above deck. When stowed, it has dimensions of 500L x 1279H x 425W, making it easy to store on your boat. The epoxy marine coating inside and out ensures its durability and protection against corrosion.
Features
- Hoisting and extending jib capabilities
- Manual luff and jib extension with detent pins
- Manual slew on Acetal bearings and SRBF thrust washer
- DNV certified 5083 Aluminium construction
- 12 or 24 Volt hoist with 2 button remote and curly cord
- Dyneema SK 75 hoisting rope
- Lightweight and compact design
- Epoxy marine coating for protection against corrosion
