An incredibly robust and reliable marine air-conditioning system built to last in the harsh marine environment. Corrosion resistant, light weight and quiet, these are the most ideal systems to have installed on vessels with 3 or more desired spaces to be cooled.

Stellair Split System air conditioners are made with cupronickel condenser tubing. The two separate units – the condenser and the evaporator – both built upon stainless-steel trays, each of which feature 2 drain ports, ensuring condensation does not linger.

Where to install the units

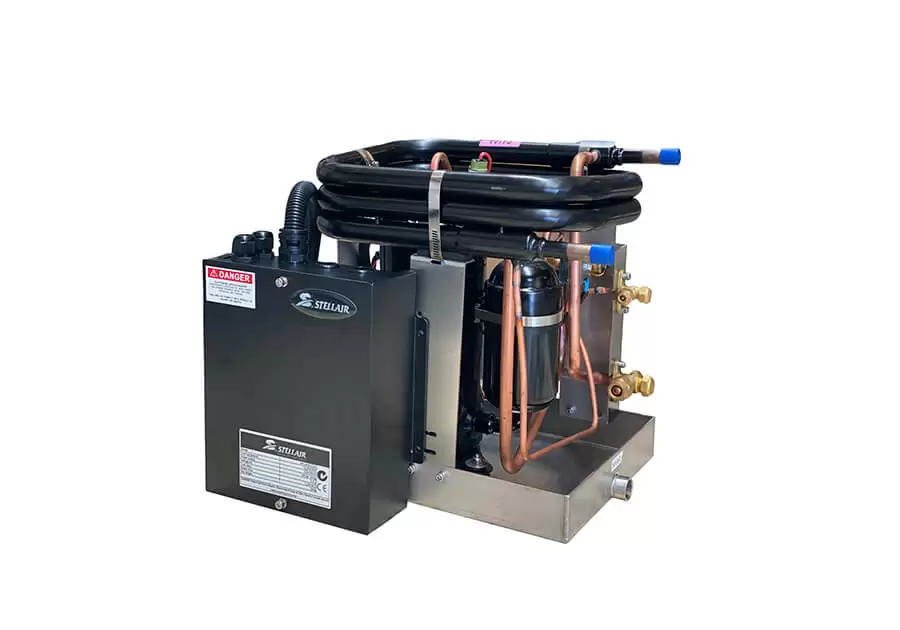

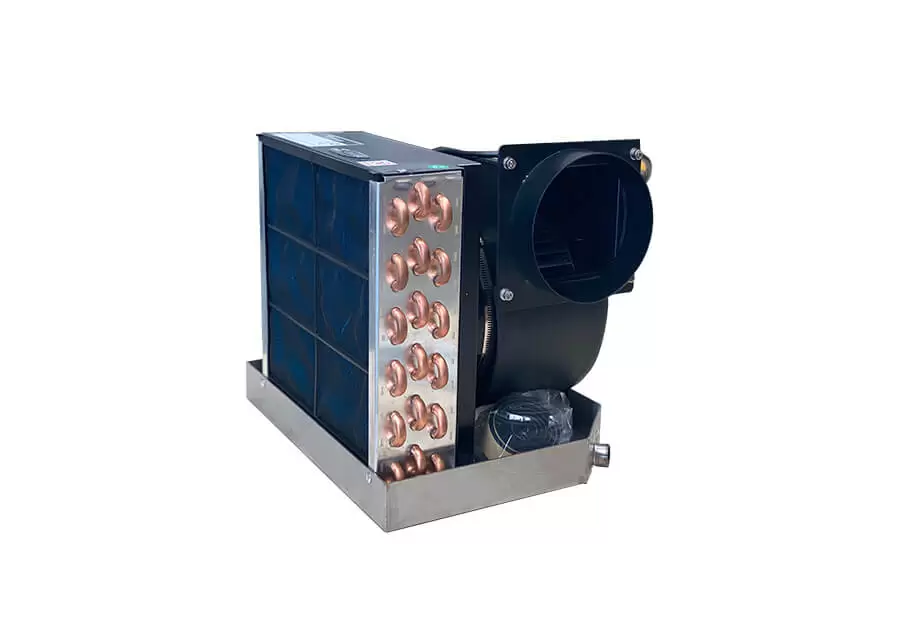

The condenser must be installed in the bilge, engine room or utility room where it is sea water cooled. The condenser is purely pumping R401a refrigerant around the boat to the fan coils. The fan coils can be installed in the cabin or under the berth where they are able to supply cooling or heating through the grilles. Stellair supply grilles have been designed with the intention of fitting the aesthetic of most boats, so they will seamlessly fit the interior of a vessel.

Features

Corrosion resistant, small volume, light weight.

Control Panel

A sleek control panel accompanies this system with your choice of either black or chrome.  User friendly controls with raised buttons and an easy-to-read screen will help you reach your chosen air regulating mode. The system cools and heats with a 5-speed fan selection.

Digital Control Panel Features

• Cool mode, Heat mode, Fan mode
• F and C conversion function
• 5-speed fan speed selection
• High & low-pressure protection
• Overload protection
• Compressor 3 minutes delayed start function

What it comes with

Compressor, control box, sea water condenser, evaporator, centrifugal fan, 4-way reversing valve, all packaged as a compact component for easy installation and maintenance.

12 months limited Australian warranty

All Stellair Marine Air-conditioning Systems come with a 12 months limited warranty.

Downloadables:

Stellair Air-Conditioner Split System Manual
