MEPC 107(49) & MARPOL Compliant Bilge Water Management

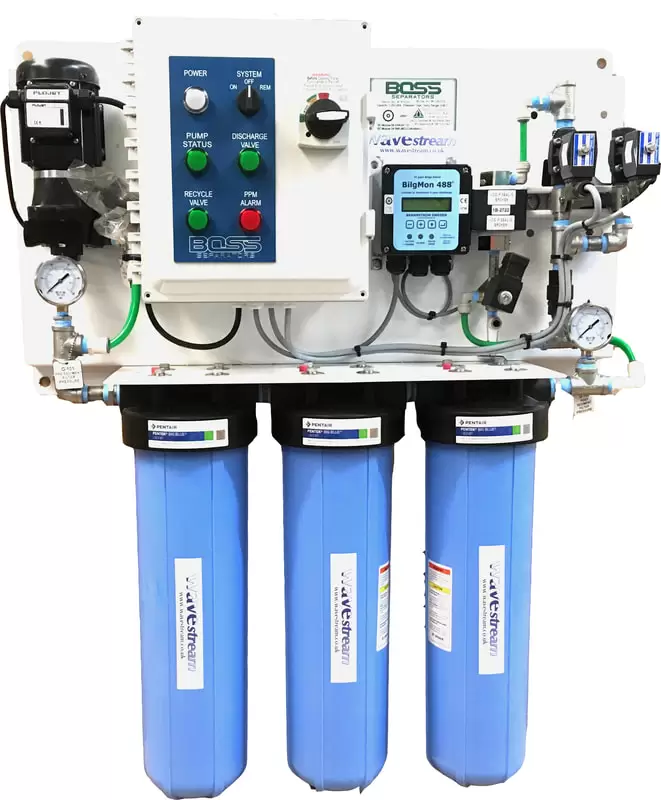

The Wavestream Wave MiniBOSS is a high-performance, IMO Certified Bilge Water Filter and Monitoring System engineered to protect our oceans while ensuring your vessel remains in total MARPOL compliance. Specifically designed for precision and reliability, the MiniBOSS prevents the discharge of oil, fuel, and microplastics, guaranteeing that all bilge water pumped overboard meets the strict legal limits of 15ppm or 5ppm.
With a focus on compact engineering and low cost of ownership, the Wave MiniBOSS is the premier choice for professional marine refits and new builds requiring world-class environmental protection.
Wave MiniBOSS Features:
- IMO certified Oil Content Monitor (OCM) which continuously samples the filtered water audible and visual alarm to provide early warning
- MEPC 107(49) certification; required for all vessels over 400GT
- MED EC Type Approval
- a high flow rate capable of 0.45m3 per hour
- continuously samples filtered water ensuring any non conforming water is automatically returned to the bilge
- is an integrated bulkhead mounted modular unit which is easily installed saving
- weight – only 37.6kgs and
- space – only 86cm x 105cm x 26cm
- has low cost of ownership with easily replaced filters
- has an automatic Data Logger which records for 18 months
Wave MiniBOSS Technical Specification
Specification
|
WMBOSS 24V
|
WMBOSS 110-240V
|
| IMO MEPC Compliance |
Monitor 107(49) certified |
| Dimensions |
86cms x 105cms x 26cms |
| Dry Weight |
37.2kgs |
| Flow Rate |
0.45 M3/hr |
| Filter Media |
Wavestream WS-C3 |
| Test barg |
3.79 |
| Operating Pressure |
Up to 3.45 bar |
| Operating Temp Range |
1 – 55 deg C |
| Oil Content Monitor |
IMO MEPC 107(49) Certified monitor |
| Single Phase Power Req’d |
24vDC |
110-120vAC or 220-240vAC |
| Three Phase Power Options |
Available only with separate transformer |
| Frequency |
50 or 60 Hz |
| Max Amperage |
8 amp breaker @ 24vDC |
4 amp @ 110vAC 1.6 amp @220vAC |
